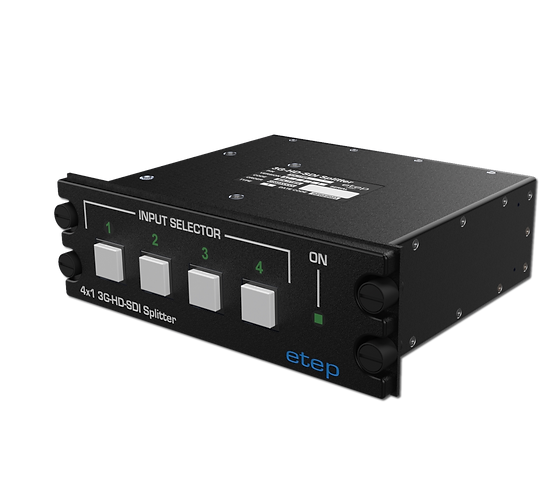

D.T.MUX VSplit

Video Splitter suitable for avionics and defense applications, splitter eases video distribution for airborne and ground-based applications. Splitter has been designed to connect 4x 3G HD-SDI inputs video signal to display one or multiple of them on a full screen.

D.T.MUX VSplit
Datasheet
Description

This airborne splitter is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display. Designed to connect 4x 3G HD-SDI inputs video signal to display one or multiple of them on a full screen.


  • Switches one or multiple of the four input signals to the 3G HD-SDI output after re-clocking and equalization.

  • One input selection, Full screen view

  • Multiple input selection, Screen split in 4 frames (Not selected input in blank screen)

  • SD/HDTV compatible (Until 1080p 60).

  • Multi-standard operation: SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).

  • Inputs: 4x SDI/HD-SDI/ HD-SDI video (75 Ohm) with BNC socket.

  • Output: 1x SDI/HD-SDI/ HD-SDI video (75 Ohm) with BNC socket.

  • Max. data rate: 3 Gbit/s.

  • Max. output level: 800mVpp / 75 Ohm.

  • EQ: Automatic equalization after losses in the 75 Ohm coax cable.

  • DZUS Cockpit rack installation following MIL-STD-MS25212, or plate mounting installation.

  • Very Low latency (About 20ms).

  • Micro power cut protection of 100ms (MIL-STD 704E)

  • MIL-STD 810F Qualification




Connections

SDI Video Inputs

4 x 10-bit SD-SDI and HD-SDI.


SDI Video Outputs

1 x HD-SDI.


SDI Rates

270Mb, 1.5G, 3G.


SDI Video Multi View Outputs

1 x 10-bit HD-SDI.

SDI Reclocking

On all SDI outputs, auto switching between standard definition or high definition.


Reference Input

None


Multi Rate Support

Auto detection of SD or HD.


Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL


HD Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60


2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p


SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.

SDI Video Sampling

4:2:2


SDI Video Sampling

Television standard sample rate of 48kHz and 24-bit.


SDI Color Precision

10-bit 4:2:2


SDI Color Space

YUV


SDI Auto Switching

Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.


SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.


Power Requirement

Power Supply

28V DC


Power Fail Protection

Micro power cut protection of 100ms (MIL-STD 704E)

Power Consumption

About 10W


Operational Voltage Range

16 to 36V DC



Physical Specifications
