D.T.MUX NanoX
The most advanced high-speed (1 Gbps) acquisition, recording, replay and transmitting system for airborne applications — in an ultra-compact, ultra-flexible design.
The NanoX is an efficient, ultra-compact data concentrator and recorder: up to sixteen stackable acquisition modules, integrated CPU/controller and optional recording (64 GB–2 TB) in a single device. It delivers high-speed (1 Gbps) recording and transmitting in one unit where other solutions need two or three — with real-time streaming in D.T.MUX, IRIG 106 Chapter 10 or IENA formats.
Built around a CPU / controller module with optional recording (64 GB–2 TB) and a dedicated power-supply module, the NanoX lets you plug and stack up to sixteen data-acquisition modules in a single unit — combining acquisition, recording, replay and transmission where other solutions need two or three separate boxes.
- High-speed 1 Gbps recording & transmit
- Up to 16 stackable acquisition modules
- 64 GB – 2 TB recording (SSD cartridge)
- Real-time streaming: D.T.MUX / IRIG 106 Ch.10 / IENA
- Patented Xchange® module technology
- Record, replay & TX module options (5–20 W, S/L/C-band)
- Master/slave Ethernet / Wi-Fi architecture
- Qualified DO-160 Rev G · MIL-STD-810G · MIL-STD-461G
- MICRO D (MIL-DTL-83513) · IRIG 106 Ch.10 compliant
Compatible software D.T.MUX Viewer Replay, decode & visualize your recordings - Lightweight unit with a very small footprint
- Fully flexible acquisition-module and chassis dimensions
- High-speed recording system (1 Gbps)
- High capacity — up to 2 TB
- Real-time data streaming in D.T.MUX, IRIG 106 Chapter 10 and IENA formats
- Patented Xchange® module technology
- Record and replay in the same unit
- Optional transmitter (TX) module — 5–20 W in S, L or C-band
- Master / slave Ethernet / Wi-Fi architecture
- Qualified to RTCA DO-160G and MIL-STD-810G (EMC: MIL-STD-461G)
- SSD cartridge security options: AES-256 encryption, quick erase, auto-destruction
- Battery module option — 1 h autonomy each, stackable up to 3
- Integrated 90° rotation support

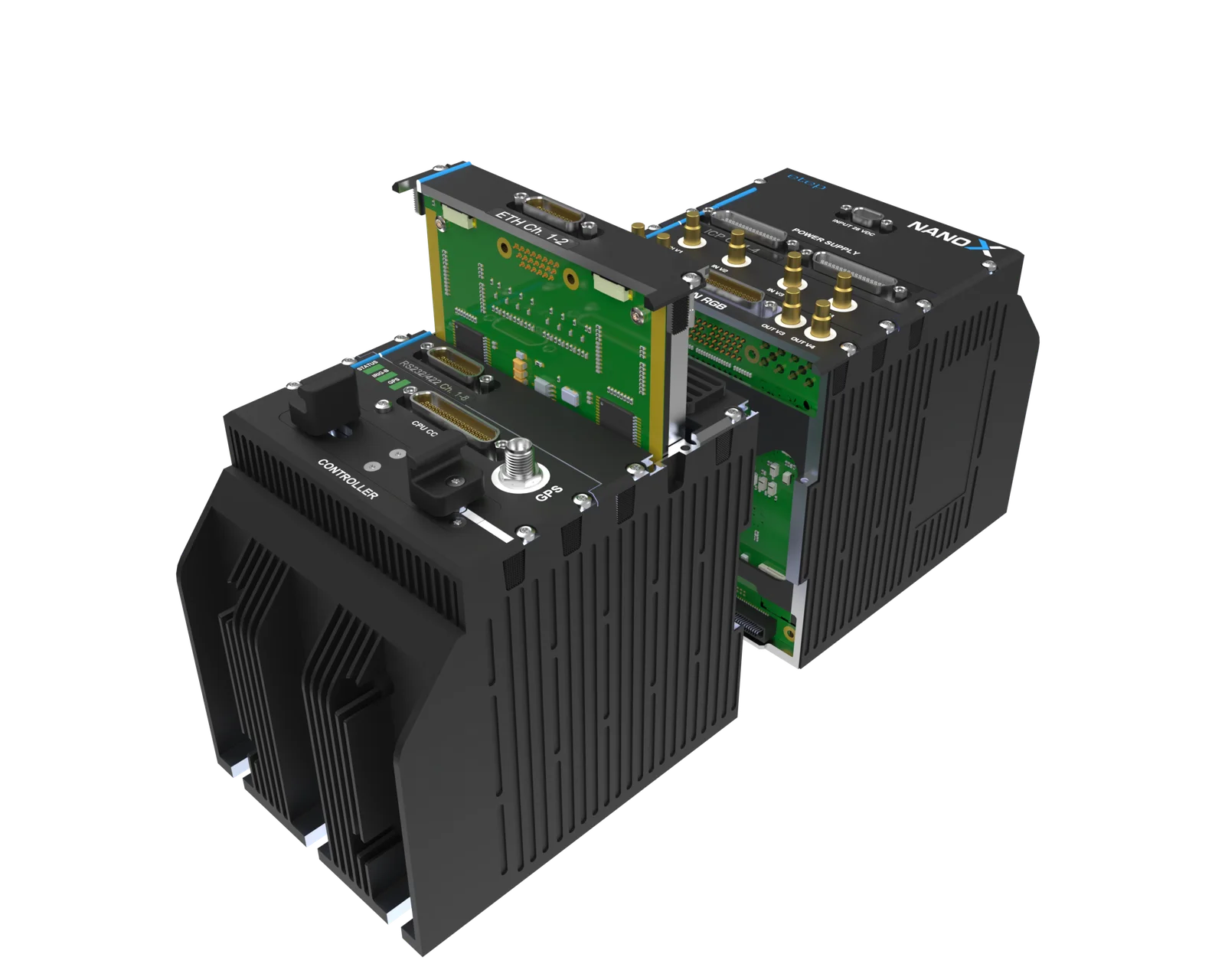

Xchange® module technology
Xchange® is ETEP’s patented module technology, developed hand-in-hand with end users to give the NanoX maximum flexibility and room to grow. Every acquisition module clips into its own frame receiver and can be added, removed or swapped anywhere in the stack — up to sixteen frames interconnect through a linear backplane connector. The result is a unit you reconfigure like a set of building blocks: mix controller and acquisition modules freely, and when a module needs attention, identify and replace just that one in seconds — keeping maintenance fast and cost low.
Qualified to DO-160G & MIL-STD-810G
- Temperature
- -40 … +71 °C
- Altitude
- 60 000 ft
- Vibration
- 2.97 g RMS (5 Hz–2 kHz)
- Shock
- 100 g / 11 ms
- Acceleration
- 15 g
- MTBF
- > 30 000 h
- Power
- 28 Vdc (16–36 V) · 12–130 W
- Power ride-through
- Ultra-capacitor
- Cooling
- Passive (COOL-NX option)
- Weight
- ≈ 1.8–3.4 kg
- Connectors
- Micro-D (MIL-DTL-83513)
// CONFIGURATOR
Build your NanoX, module by module.
The NanoX is fully modular: a power-supply module, the controller of your choice and up to sixteen stackable acquisition modules. Assemble your unit below and send the configuration to our team for a quote.
